Category：Oil Immersed Transformer
Phase: Three Phase
Primary Voltage Ratings: Custom
Secondary Voltage Ratings: Custom
Rated Capacity: Custom
Rated Frequency: 50/60HZ

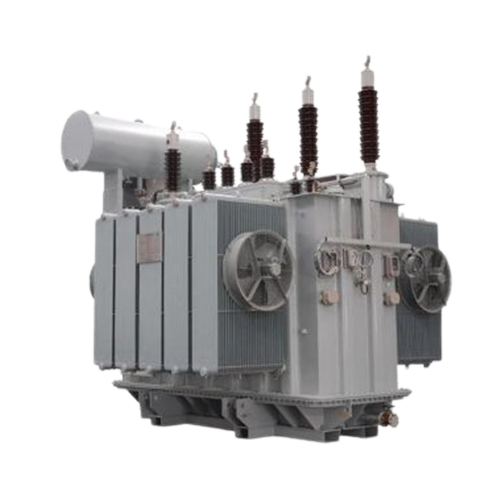

The 110kv three-phase oil-immersed power transformer is manufactured in accordance with the International Electrotechnical Commission standard IEC76 and the People’s Republic of China standard GB1094.1-2-1996/GB1094.3,-1985.
This series of products have excellent impact resistance, good mechanical properties, strong short-circuit resistance, low noise, low loss, good sealing performance, and low maintenance.

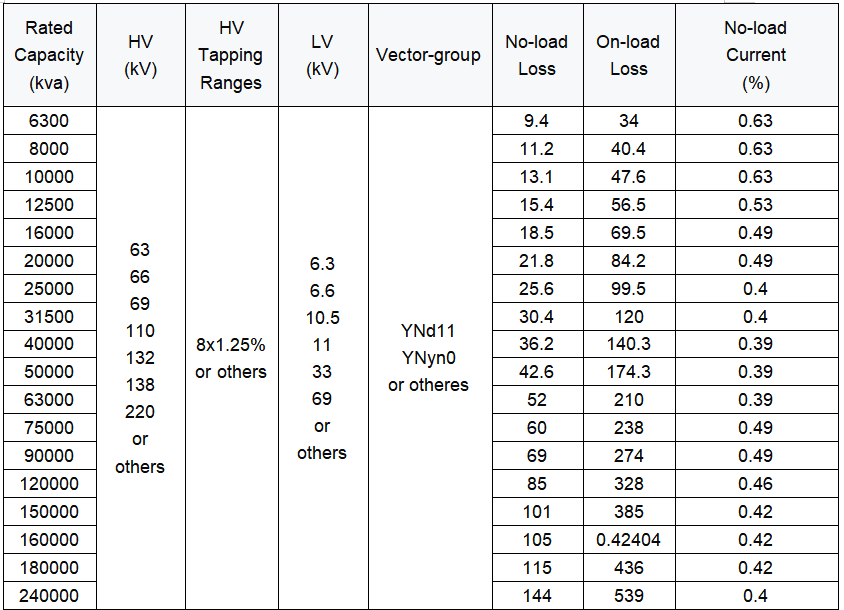

| 110kV Grade Three Winding Load Regulating Power Transformer | |||||||||||||
| Rated Capacity KVA |
Voltage Combination | Connection Symbol | Off-load Loss(W) | On-load Loss(W） (75℃） |
Short Circuit Impedance (%) | Off-load Current (%) |
Weight(KG) | Dimensions(mm) | |||||
| High Voltage (KV) |
Tapping Range (%) |
Low Voltage (KV) |
Oil | Total | Length | Width | Height | ||||||
| 6300 | 110 121 |
‘+8×1,25% | 6.3 6.6 10.5 11 |
Ynd11 | 10 | 36.9 | 10.50% | 0.60% | 6500 | 21100 | 4540 | 4350 | 4580 |
| 8000 | 12 | 45 | 0.60% | 7260 | 24600 | 4860 | 4400 | 4630 | |||||
| 10000 | 14.2 | 53.1 | 0.50% | 7860 | 27900 | 4900 | 4450 | 4830 | |||||
| 12500 | 16.8 | 63 | 0.50% | 8600 | 31600 | 5010 | 4500 | 4960 | |||||
| 16000 | 20 | 77 | 0.45% | 9300 | 35600 | 5620 | 4520 | 5080 | |||||
| 20000 | 24 | 91.7 | 0.40% | 10000 | 39800 | 5730 | 4550 | 5200 | |||||
| 25000 | 28.4 | 110.7 | 0.40% | 11100 | 45200 | 5820 | 4590 | 5290 | |||||
| 31500 | 33.5 | 133.2 | 0.35% | 12500 | 49600 | 5930 | 4820 | 5400 | |||||
| 40000 | 40.4 | 156.6 | 0.30% | 13700 | 57100 | 6100 | 4930 | 5500 | |||||
| 50000 | 47 | 194.4 | 0.25% | 14800 | 64700 | 6450 | 5050 | 5590 | |||||
| 63000 | 56.8 | 234 | 0.25% | 15600 | 71800 | 6970 | 5190 | 5690 | |||||
