Category：Oil Immersed Transformer
Phase: Three Phase
Primary Voltage Ratings: 25KV-35KV or Custom
Secondary Voltage Ratings: 200v-440v or Custom
Rated Capacity: 30-3000KVA or Custom
Rated Frequency: 50/60HZ

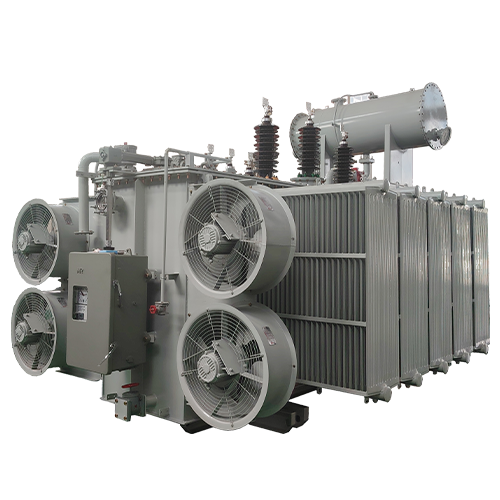

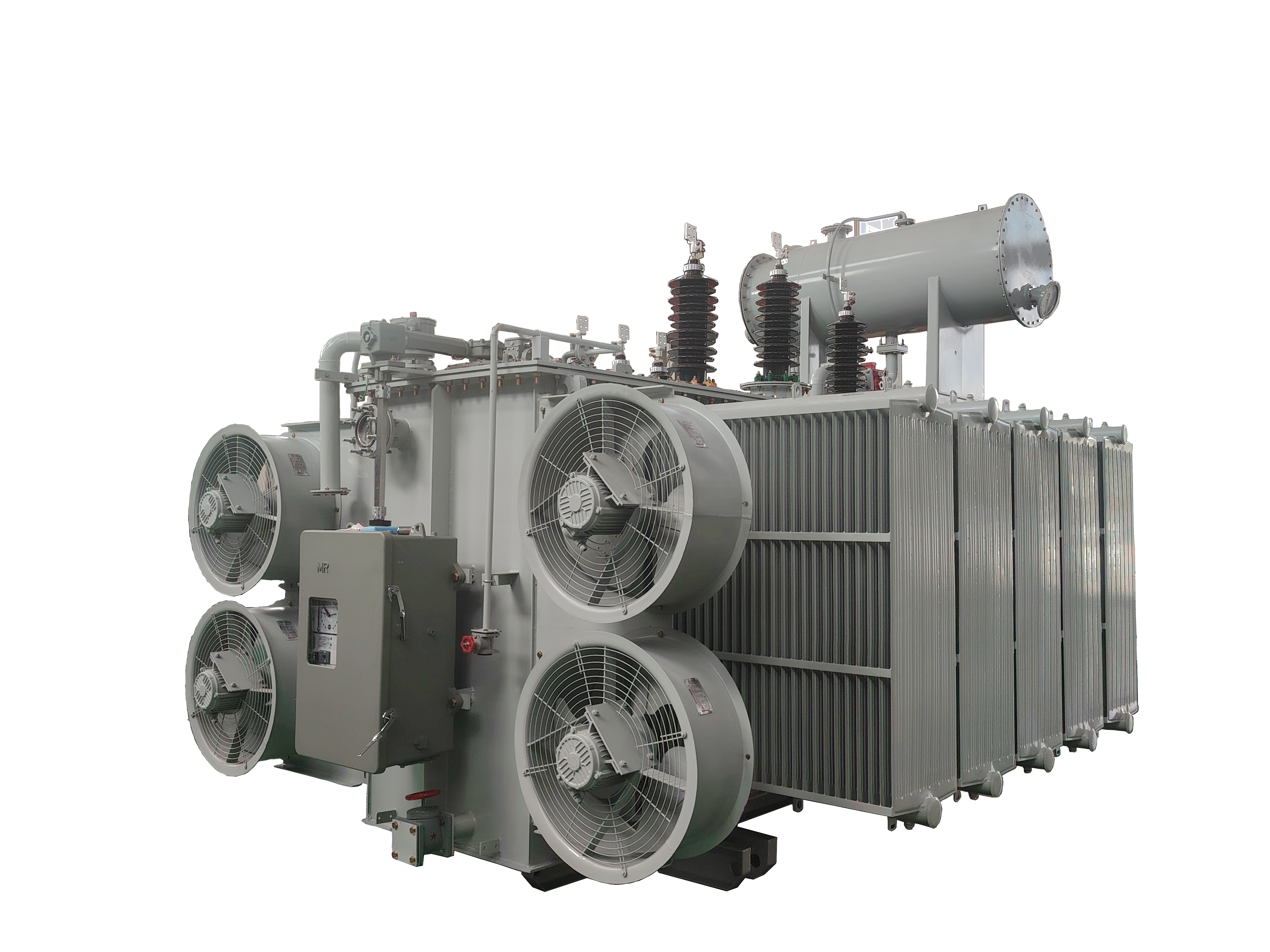

35 kV oil-immersed transformer is an important component of the 35 kV voltage level transformation of the power grid. It has high requirements for its reliability, economy, and energy saving. This series of products has the characteristics of fast heat dissipation, low loss and low cost, and is widely used in electronics Industrial, medical, power plant, high-rise buildings and other places.
| S1135KV Oil Immersed Transformer Main Technical Parameters | ||||||||||||
| Rated Capacity KVA |
Voltage Combination | Connection Symbol | Off-load Loss(W) | On-load Loss(W） (75℃） |
Impedance (%) |
Weight(KG) | Dimensions(mm) | |||||
| High Voltage (KV) |
Tapping Range (%) |
Low Voltage (KV) |
Oil | Total | Length | Width | Height | |||||
| 50 |
25 30 33 35 |
±5 ±2x2.5 |
0.23 0.38 0.4 0.44 0.48 0.6 |
Dyn11 YynO |
0.166 | 1.285 | 6.44% | 165 | 535 | 1120 | 670 | 1235 |
| 80 | 0.209 | 1.734 | 6.66% | 195 | 670 | 1120 | 700 | 1270 | ||||
| 100 | 0.244 | 2.138 | 6.39% | 210 | 745 | 1120 | 720 | 1285 | ||||
| 125 | 0.286 | 2.552 | 6.27% | 215 | 790 | 1160 | 715 | 1330 | ||||
| 160 | 0.3 | 3.027 | 6.40% | 245 | 970 | 1245 | 785 | 1365 | ||||
| 200 | 0.361 | 3.649 | 6.28% | 360 | 1050 | 1245 | 795 | 1380 | ||||
| 250 | 0.424 | 4.294 | 6.49% | 285 | 1175 | 1335 | 880 | 1395 | ||||
| 315 | 0.51 | 5.2 | 6.31% | 310 | 1305 | 1380 | 920 | 1420 | ||||
| 400 | 0.613 | 6.171 | 6.31% | 355 | 1540 | 1510 | 1010 | 1455 | ||||
| 500 | 0.716 | 7.452 | 6.51% | 390 | 1760 | 1120 | 1105 | 1502 | ||||
| 630 | 0.897 | 8.65 | 6.60% | 430 | 2000 | 1120 | 1210 | 1527 | ||||
| 800 | 1.042 | 10.181 | 6.24% | 525 | 2545 | 2080 | 1215 | 1770 | ||||
| 1000 | 1.22 | 12.375 | 6.30% | 600 | 2885 | 2125 | 1270 | 1850 | ||||
| 1250 | 1.457 | 15.119 | 6.40% | 690 | 3275 | 2150 | 1300 | 1950 | ||||
| 1600 | 1.796 | 18.337 | 6.53% | 840 | 3955 | 2310 | 1355 | 2070 | ||||
| 2000 | 2.105 | 21.122 | 6.47% | 1010 | 4775 | 2390 | 1395 | 2170 | ||||
| 2500 | 2.514 | 25.296 | 6.29% | 1145 | 5550 | 2515 | 1435 | 2300 | ||||
