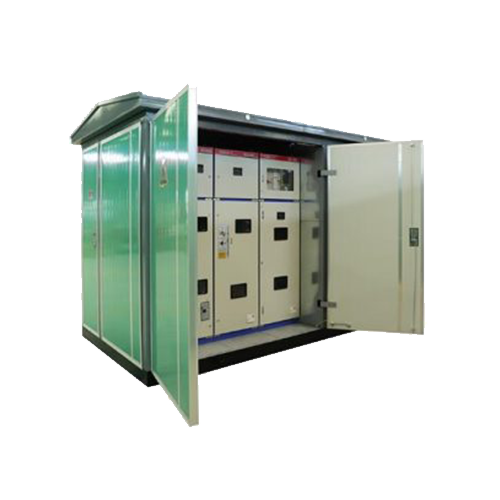

Prefabricated Compact Substation

YB series prefabricated substation consists of four parts: high voltage room, low voltage room, transformer room and enclosure.

1.High voltage side voltage: 3 ~ 35kV,
2.Low voltage side voltage: 0.4 ~ 10kV
3.Transformer capacity: 100-3000kva
4.Shell: can be customized

Prefabricated Compact Substation
Prefabricated Compact Substation

Product Features

YB series prefabricated substation consists of four parts: high voltage room, low voltage room, transformer room and enclosure. The shell is designed according to foreign technology and according to the actual situation; the high-voltage side adopts a load switch or a vacuum circuit breaker; the top cover of the box body is designed with a double-layer structure, which has a good heat insulation effect.

Prefabricated substation combine high-voltage electrical equipment, transformers, and low-voltage electrical equipment into a compact complete set of power distribution devices. The box material is made of channel steel, aluminum alloy and flame-retardant composite materials. European-style transformers have the characteristics of strong completeness, small size, compact structure, safe and reliable operation, convenient maintenance, and mobility.

Prefabricated substation are used for outdoor prefabricated substation equipment accessible to the public with a primary side AC rated voltage of 12kV, a transformer capacity of 1600kVA, and an operating frequency of not more than 50Hz. The substation is externally connected by cables and can be operated from inside or outside it. It is used in urban high-rise buildings, urban and rural buildings, residential quarters, high-tech development zones, small and medium-sized factories, mining and oil fields, and temporary construction sites, etc., for receiving and distributing electric energy in power distribution systems.

Specification

Name Unit High Voltage Electrical   Equipment Transformer High  Voltage Electrical   Equipment
Rated Voltage KV 12 10/0.4 0.4
Rated Current A 630 144/3600 3600
Rated Frequency HZ 50 50 50
Rated capacity KVA 50~2500
1min power frequency withstand KV To the ground, between phases 42, fracture 48 35/28 2.0/2.5
voltage(1min)
lightning impulse withstand voltage KV 75 75
Shell prote ction class IP23
Noise Level dB oil change≤55,Dry change ≤65
Size mm 4000*2300*2500~8600*3330*3000
